KANTAFLEX TM Elastomeric Strip Seal Joint

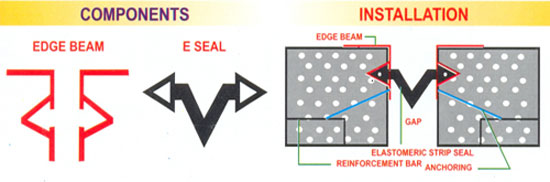

As per MoRTH Section 2600, Clause 2607. Main components are Edge Beam and E Seal.
  1. Edge beam shall be placed in such a manner that the grooves are positioned properly.
  2. Steel structure and main reinforcement shall be anchored with proper welding.
  3. Alignment shall be checked for both steel structures,if required by using suitable device.
  4. Recess shall be filled with high quality of the concrete not less than M 35 grade.
  5. If any installation brackets were used,shall be removed after the concrete has cured.
  6. Kantaflex elastomeric strip seal shall be cut into the required length and inserted between the beams by using the proper device and to be ensured that the bulb of the seal is getting into the steel grooves of the both edge beams.
  7. When the recess concrete has become set, a sturdy ramp shall be placed over the joint to protect the exposed steel beams and the elastimeric seal from the traffic.
  8. Without carriageway surfacing, expansion joint shall not be exposed to traffic loading.
